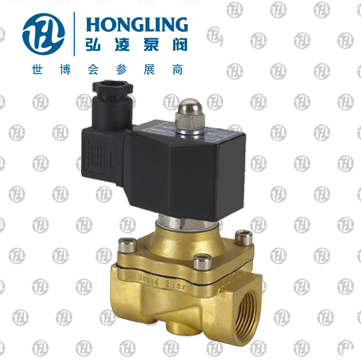

二位二通零壓差電磁閥
產品型號：ZS
發布時間：2008-6-15
二位二通常型電磁閥,斷電打開,通電關閉閥體材質為銅,和SS304不銹鋼(常規),SS316不銹鋼(定制)最大耐壓力10cm2環境溫度0℃～65℃
產品系列化生產,體積小,流量大,適用范圍廣按閥上所標流向箭頭,可任意安裝;為增強使用壽命,最好線圈向上,水平安裝
下一個產品：電磁式煤氣安全切斷閥
上一個產品：二位二通先導式電磁閥
相關產品:

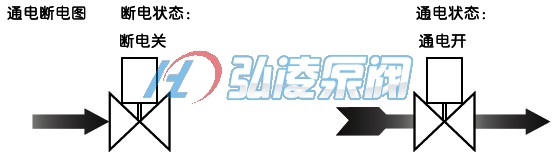

二位二通零壓差電磁閥詳細說明：
二位二通常型電磁閥,斷電打開,通電關閉閥體材質為銅,和SS304不銹鋼(常規),SS316不銹鋼(定制)*大耐壓力10cm2環境溫度0℃～65℃產品系列化生產,體積小,流量大,適用范圍廣按閥上所表流向箭頭,可任意安裝;為增強使用壽命,*好線圈向上,水平安裝。 電壓：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允許波動。 膜片、密封件，可采用NBR、VITON、EPDM等多種，以適用不同流體的開關控制。
二位二通零壓差電磁閥性能參數：
二位二通零壓差電磁閥型號規格:
| 接管口徑 |
流量通徑 mm |
CV值 | 壓力差（kgf/cm2） | *大流體溫度 | 線圈 | 功率 |
外形尺寸 長×寬×高 A×B×H |
重量KG |
訂貨型號以下表 中電壓為 220CAC 50/60HZ |
|||||||
|
*小 壓力 |
*大工作壓力 | |||||||||||||||
| 空氣瓦斯 | 水熱水液體 |
輕油 ≤20CST |
F級 | VA | W | |||||||||||
| AC | DC | AC | DC | AC | DC | 配置 | AC220V | DC24V | ||||||||
| 1/8 | 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 80 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02N1AC3 |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02E1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02V1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 80 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02N1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02E1AC3 | |
| 2.5 | 0.23 | 0 | 7 | 5 | 5 | 5 | 5 | 5 | 120 | D | 22 | 13 | 41×29×88 | 0.37 | ZS2DF02V1AC3 | |
| 1/4 | 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 80 | D | 57.2 | 32 | 52.5×32.5×115 | 0.7 | ZS2DF02N1B04 |
| 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 52.5×32.5×115 | 0.7 | ZS2DF02E1B04 | |
| 4.0 | 0.6 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 52.5×32.5×115 | 0.7 | ZS2DF02V1B04 | |
| 3/8 | 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 80 | D | 57.2 | 32 | 69×57×135 | 1.2 | ZS2DF02N1C16 |
| 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 69×57×135 | 1.2 | ZS2DF02E1C16 | |
| 16 | 4.8 | 0 | 5 | 3 | 3 | 5 | 3 | 3 | 120 | D | 57.2 | 32 | 69×57×135 | 1.2 | ZS2DF02V1C16 | |
| 1/2 | 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 69×57×135 | 1.15 | ZS2DF02N1C16 |
| 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69×57×135 | 1.15 | ZS2DF02E1C16 | |
| 16 | 4.8 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 69×57×135 | 1.15 | ZS2DF02V1C16 | |
| 3/4 | 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 73×57×142 | 1.25 | ZS2DF02N1E20 |
| 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 73×57×142 | 1.25 | ZS2DF02E1E20 | |
| 20 | 7.6 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 73×57×142 | 1.25 | ZS2DF02V1E20 | |
| 1 | 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 99×77.5×150 | 1.7 | ZS2DF02N1G25 |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 99×77.5×150 | 1.7 | ZS2DF02E1G25 | |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 99×77.5×150 | 1.7 | ZS2DF02V1G25 | |
| 11/4 | 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 112×86.5×180 | 2.75 | ZS2DF02N1H32 |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 112×86.5×180 | 2.75 | ZS2DF02E1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 112×86.5×180 | 2.75 | ZS2DF02V1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123×94×190 | 3.7 | ZS2DF02N1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.7 | ZS2DF02E1H32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.7 | ZS2DF02V1H32 | |
| 11/2 | 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123×94×190 | 3.15 | ZS2DF02N1J40 |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.15 | ZS2DF02E1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.15 | ZS2DF02V1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 123×94×190 | 3.55 | ZS2DF02N1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.55 | ZS2DF02E1J40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 123×94×190 | 3.55 | ZS2DF02V1J40 | |
| 2 | 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 168×123×216 | 5.4 | ZS2DF02N1K50 |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168×123×216 | 5.4 | ZS2DF02E1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168×123×216 | 5.4 | ZS2DF02V1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | , 3 | 3 | 80 | D | 70 | 40 | 168×123×216 | 5.6 | ZS2DF02N1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168×123×216 | 5.6 | ZS2DF02E1K50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 168×123×216 | 5.6 | ZS2DF02V1K50 | |
|
法 蘭 4 孔 連 接 |
25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 57.2 | 32 | 140×115×160 | 3.05 | ZS2DF02N1F25 |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 140×115×160 | 3.05 | ZS2DF02E1F25 | |
| 25 | 12 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 57.2 | 32 | 140×115×160 | 3.05 | ZS2DF02V1F25 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 152×135×235 | 5.4 | ZS2DF02N1F32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152×135×235 | 5.4 | ZS2DF02E1F32 | |
| 32 | 24 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152×135×235 | 5.4 | ZS2DF02V1F32 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 152×145×240 | 6.4 | ZS2DF02N1F40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152×145×240 | 6.4 | ZS2DF02E1F40 | |
| 40 | 29 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 152×145×240 | 6.4 | ZS2DF02V1F40 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 80 | D | 70 | 40 | 195×160×270 | 8.6 | ZS2DF02N1F50 | |
| 50 | 48 | 0 | 5 | 3 | 5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 195×160×270 |
8.6 |
ZS2DF02E1F50 | |
| 50 | 48 | 0 |
5 |
3 |
5 | 3 | 3 | 3 | 120 | D | 70 | 40 | 195×160×270 | 8.6 | ZS2DF02V1F50 | |
二位二通零壓差電磁閥結構尺寸：
| 線圈型式和編號 | 電壓 | 功率 | 所配電磁閥流量孔徑(mm) | |||||
| 50HZVA | 60HZVA | 直流 | ||||||
| 起動 | 保持 | 起動 | 保持 | W | 常閉型 | 常開型 | ||
| N05-2101 | AC220V | 32 | 13 | 32 | 12 | φ2.5 | ||
| N05-2102 | AC110V | 32 | 13 | 32 | 12 | φ3.0 | ||
| N05-2103 | DC24V |
|
8.5 |
|
||||
| N05-2104 | DC12V | 8.5 | ||||||
| D01-4101 | AC220V | 82 | 33 | 82 | 28 | φ4～φ25 | ||
| N01-4101 | φ4～φ25 | |||||||
| D03-5106 | AC220V | 143 | 57 | 143 | 46 | φ4～φ25 | ||
| A01-4101 | AC220V | 70 | 28 | 70 | 23 | φ4～φ25 | φ4～φ25 | |
| D01-4102 | AC110V | 82 | 33 | 82 | 28 | |||
| N01-4102 | AC110V | 82 | 33 | 82 | 28 | |||
| A01-4102 | AC110V | 70 | 28 | 70 | 23 | |||
| D03-5101 | DC24V |
|
32 | φ4～φ25 | ||||
| N03-5101 | ||||||||
| A03-5101 | DC24V | 25 | ||||||
| D03-5102 | DC12V | 28.5 | ||||||
| D10-6101 | AC220V | 175 | 70 | 175 | 56 | φ32～φ50 | ||
| N10-6101 | ||||||||
| A10-6101 | AC220V | 110 | 44 | 10 | 36 | |||
| D10-6101 | AC110V | 110 | 45 | 110 | 36 | |||
| N10-6102 | ||||||||
| A10-6102 | AC110V | 110 | 44 | 110 | 36 | |||
| D10-6104 | DC24V |
|
40 | |||||
| N10-6104 | ||||||||
| A10-6104 | DC24V | 49 | ||||||
